Create a Report Parameter

This topic demonstrates how to create a report parameter in the Report Designer. The topic also describes the options you can specify for a report parameter.

Create a Report Parameter in the Report Designer

In the Report Designer, you can create a parameter from the Field List and Properties panel. The created parameter appears in the Field List's Parameters node.

A parameter in the Field List

Create From the Field List

Click the plus button in the Field List's Parameters node.

Create a parameter from the Field List

Specify parameter options in the invoked Add New Parameter dialog and click OK.

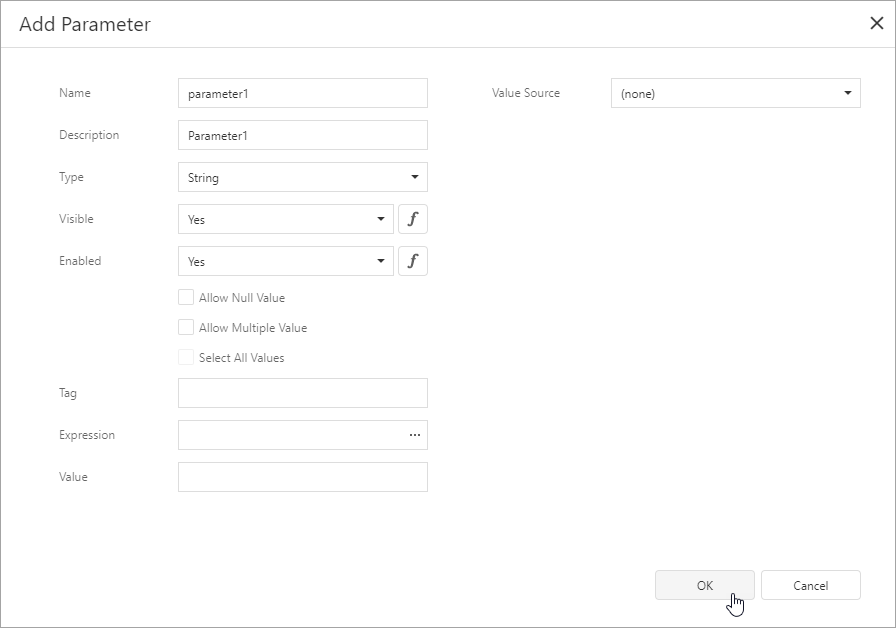

Add New Parameter dialog

Create From the Properties Panel

Select a report, navigate to the Properties panel Data section, and click the plus button right to the Parameters node.

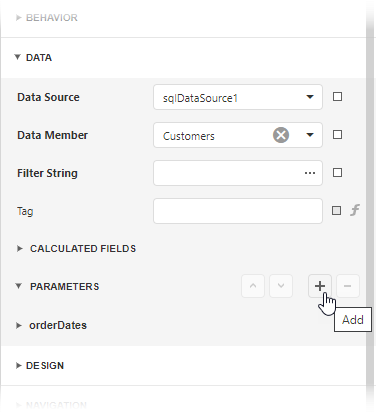

Create a parameter from the Properties panel

Specify parameter options in the invoked Add New Parameter dialog and click OK.

Add New Parameter dialog

Parameter Options

Name

The name by which you can reference a parameter in a report. Note that report parameters should have unique names.

Description

A parameter description that appears on a report's Print Preview in the Parameters panel.

Parameter description

Visible

Specifies whether a parameter is visible in the Parameters panel.

You can assign an expression to this option. The example below specifies an expression that shows/hides a parameter based on a value of another parameter.

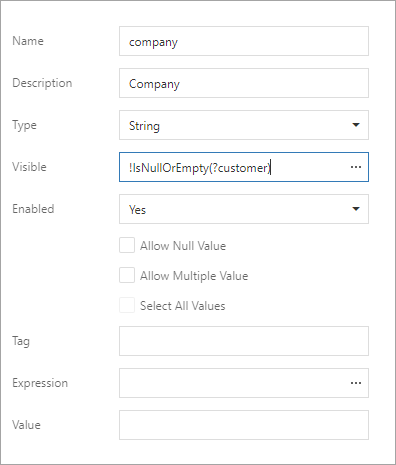

Specify an expression for the Visible option

Enabled

Specifies whether a parameter editor is enabled or disabled in the Parameters panel. You can set this option to No to make a parameter's default value read-only.

Disabled parameter editor

You can also assign an expression to this option. The example below specifies an expression that enables/disables a parameter's editor based on a value of another parameter.

Specify an expression for the Enabled option

Type

The type of parameter values. The following types are available:

String;
Date and Time;
Date;
Time;
Number (16-bit integer);
Number (32-bit integer);
Number (64-bit integer);
Number (floating point);
Number (double-precision floating point);
Number (decimal);
Boolean;
GUID (Globally Unique Identifier).

Default Value

A parameter's default value. This value is displayed in the Parameters panel when you open a report's Print Preview.

You can specify an expression for this option. For example, set this option to Now() to use the current date as a date parameter's default value.

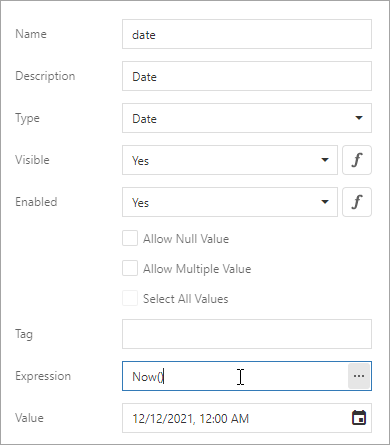

Specify an expression for a parameter's Default Value option

note

You can use only constants, operators, and date-time / logical / math / string functions in an expression for a parameter's default value.

Allow Null Value

When the Allow Null Value option is enabled, you can leave the parameter's value unspecified.

Allow Null Value option

Allow Multiple Values

When the Allow Multiple Values option is enabled, you can specify multiple values for a report parameter.

Allow Multiple Values option

Select All Values

Enable the Select All Values option to use all elements from a custom set of values as a parameter's default value.

note

You can specify the Select All Values option only when the Allow Multiple Values option is enabled.

Value Source

Use the Value Source option to specify a custom set of values a parameter can accept. You can create a static list of values, load values from a data source, or specify a date range. Refer to the following topics for more details:
