Matrix 2 of 5

Matrix 2 of 5 is a linear one-dimensional barcode. Matrix 2 of 5 is a self-checking numerical-only barcode.

Unlike the Interleaved 2 of 5, all of the information is encoded in the bars; the spaces are of a fixed width and used only to separate the bars. Matrix 2 of 5 is used primarily for warehouse sorting, photo finishing, and airline ticket marking.

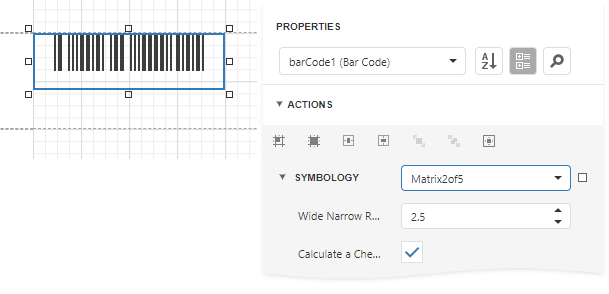

Add the Barcode to a Report

1. Drag the Barcode item from the report controls toolbox tab and drop it onto the report.



2. Set the control’s Symbology property to Matrix2of5.



3. Specify common barcode properties and properties specific to Matrix 2 of 5.

Specific Properties

In the property grid, expand the Symbology list and specify the following properties specific to Matrix 2 of 5:

• Calculate a Checksum

  Specifies whether to calculate a checksum for the barcode.

• Wide Narrow Ratio

  Specifies the density of a barcode's bars.
