Code 128
Code 128 is a very effective, high-density symbology which permits the encoding of alphanumeric data. The symbology includes a checksum digit for verification, and the barcode can also be verified character-by-character, allowing the parity of each data byte to be verified.
This symbology has been widely implemented in many applications where a relatively large amount of data must be encoded in a relatively small amount of space. Its specific structure also allows numerical data to be effectively encoded at double-density.
Add the Barcode to a Report
-
Drag the Barcode item from the report controls toolbox tab and drop it onto the report.
-

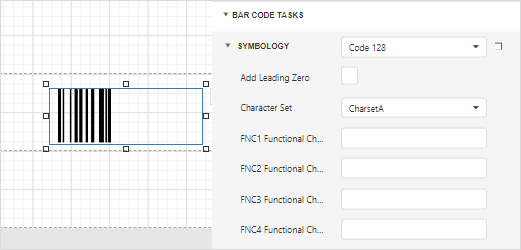

Set the control’s Symbology property to Code128.
-
Specify common barcode properties and properties specific to Code 128.
Specific Properties
In the property grid, expand the Symbology list and specify the following properties specific to Code 128:
-
Character Set
Specifies the set of symbols which can be used when setting the barcode's text.
-
FNC1 Functional Character
A substring/character that serves as the placeholder for the FNC1 functional character.
-
FNC2 Functional Character
A substring/character that serves as the placeholder for the FNC2 functional character.
-
FNC3 Functional Character
A substring/character that serves as the placeholder for the FNC3 functional character.
-
FNC4 Functional Character
A substring/character that serves as the placeholder for the FNC4 functional character.
